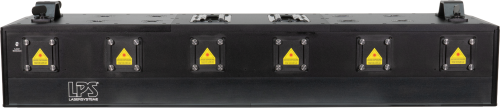

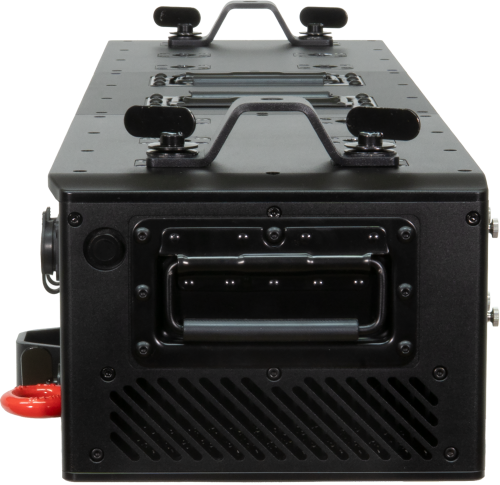

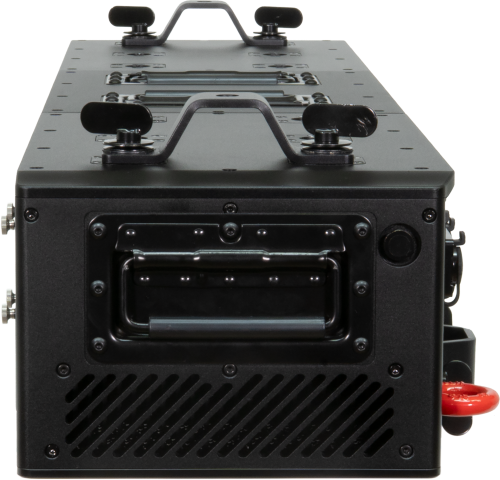

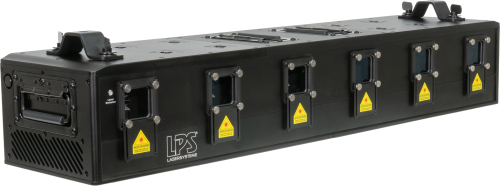

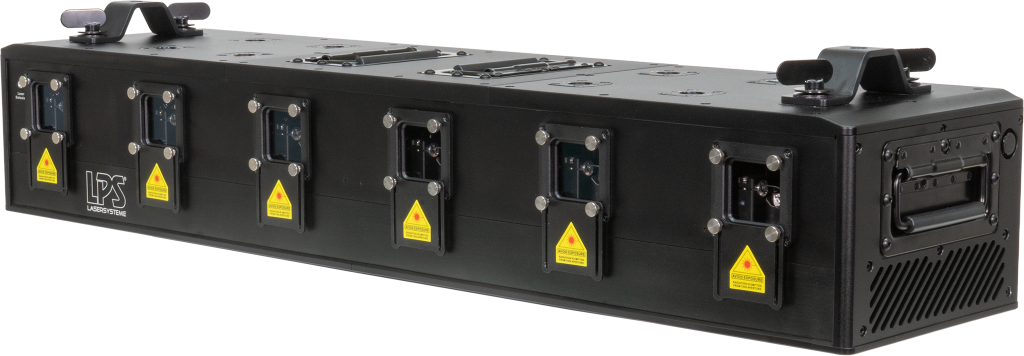

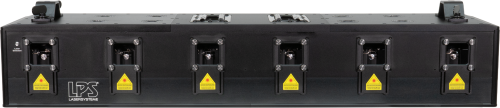

LPS SixSCAN 18 IP66
- 18'000 mW guaranteed power
- 6 x RGB Diode Modules
- 6 x X/Y Scanners - 30kpps at 8°
- Full color mixing - analog modulation
- Extremely sharp beams - low divergence
- Professional DMX with three different profiles

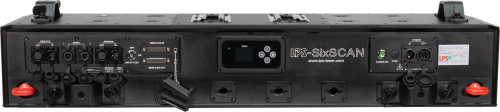

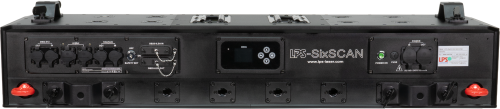

- PowerCon True1 In/Out
- 5-pin DMX In/Out
- ILDA In/Out
- ArtNet
- 3-pin XLR E-Stop In/Out
- LCD-Display
- Key Switch
Experience a new dimension of laser performance with LPS SixSCAN 18 IP66 — a pure diode RGB laser scanner bar engineered for professionals who demand more. Featuring six independent laser scanners and six RGB laser modules (white light) - delivering a power of 6 x 500 mW / 638 nm red, 6 x 900 mW / 525 nm green, and 6 x 1600 mW / 450 nm blue.
Each scanner can be individually controlled to display either synchronized or completely different laser animations at the same time — giving lighting designers full creative freedom to craft breathtaking, multi-layered visual experiences. With its intense, vivid colors and impressive laser output, LPS SixSCAN 18 IP66 commands attention on any stage.
The LPS SixSCAN 18 IP66 is controllable via DMX512 (CH28, CH127, CH163), ArtNET and ILDA. It convinces with a smart design for rough use and can be effortlessly integrated into an existing lighting setup — making it the ideal choice on stage, for concerts, theatres, operas, TV productions, festivals, theme parks, amusement parks, and any other professional event where extraordinary laser design matters.
Six scanners. Countless possibilities - that's LPS SixSCAN 18 IP66.
Each scanner can be individually controlled to display either synchronized or completely different laser animations at the same time — giving lighting designers full creative freedom to craft breathtaking, multi-layered visual experiences. With its intense, vivid colors and impressive laser output, LPS SixSCAN 18 IP66 commands attention on any stage.
The LPS SixSCAN 18 IP66 is controllable via DMX512 (CH28, CH127, CH163), ArtNET and ILDA. It convinces with a smart design for rough use and can be effortlessly integrated into an existing lighting setup — making it the ideal choice on stage, for concerts, theatres, operas, TV productions, festivals, theme parks, amusement parks, and any other professional event where extraordinary laser design matters.
Six scanners. Countless possibilities - that's LPS SixSCAN 18 IP66.
Benefits & features
Operation Modes
ILDA / DMX / ArtNet
Guaranteed Power at aperture
18'000 mW
Dimensions
960 x 280 x 340 mm (L x W x H), w/o bracket
33 kg
Max. Scan Angle
40°
Beam Specifications
3 x 6 mm / 1.2 mrad
Scanner
30kpps at 8°
Colour mixing
Analogue modulation
Power Supply
100 V - 240 V AC, 50/60 Hz
360 W

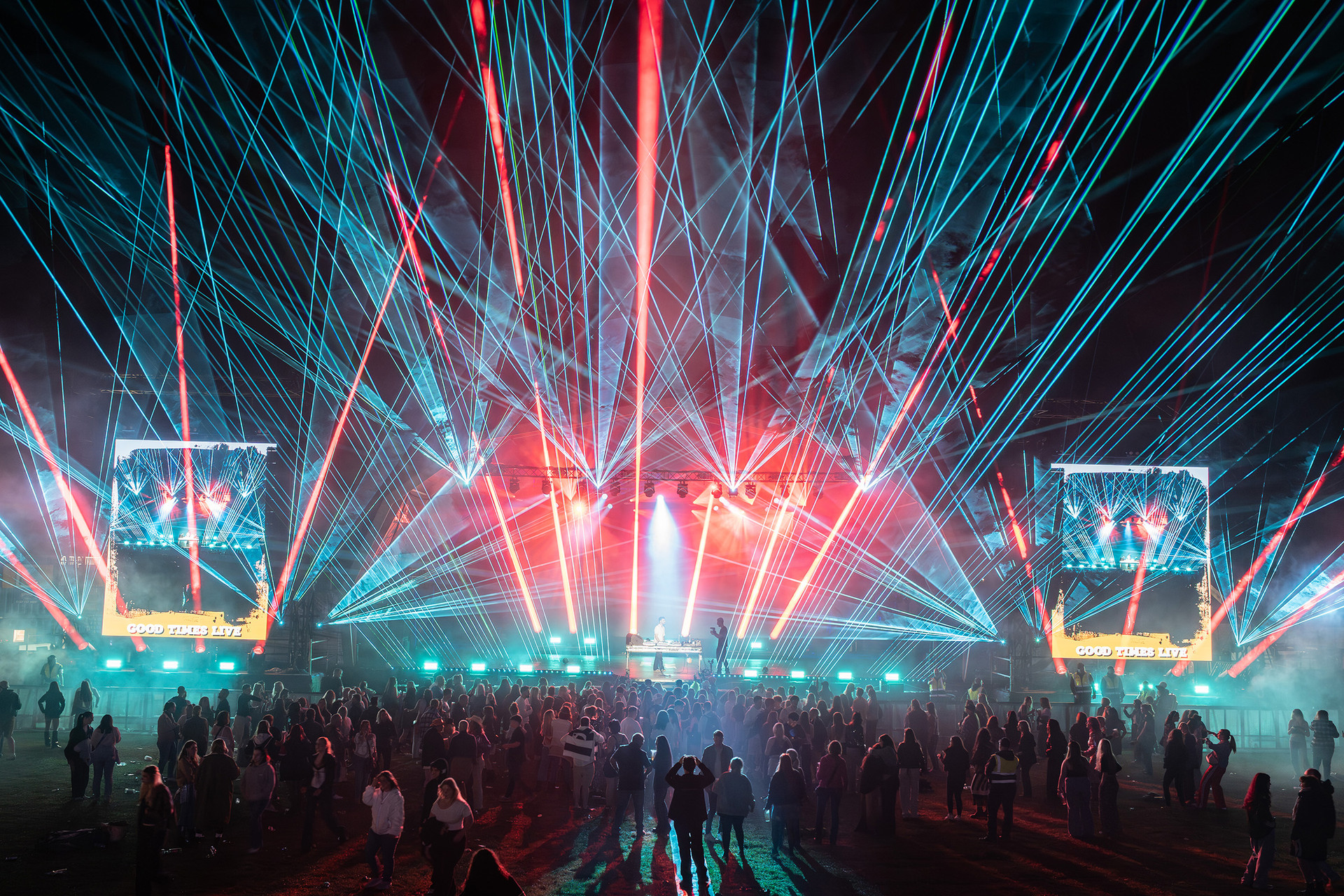

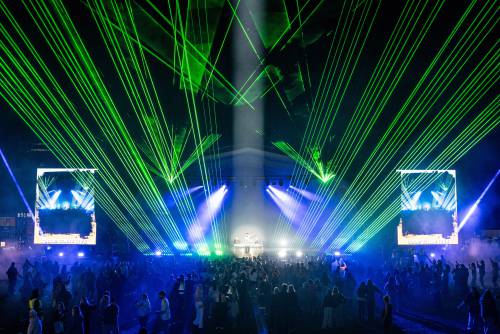

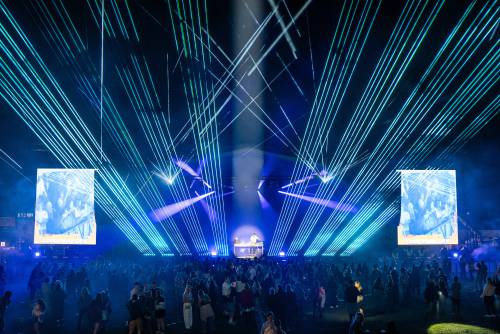

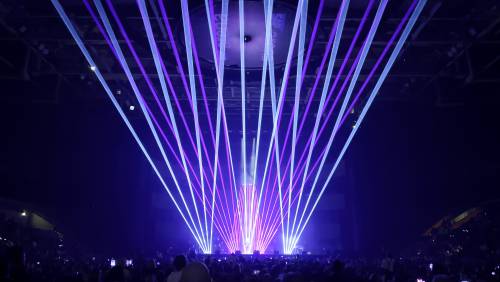

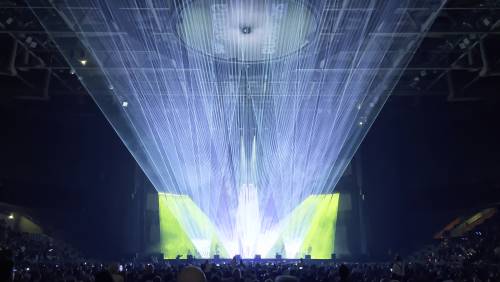

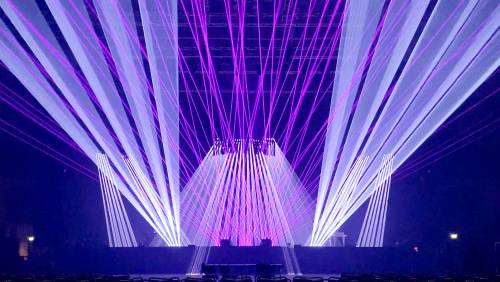

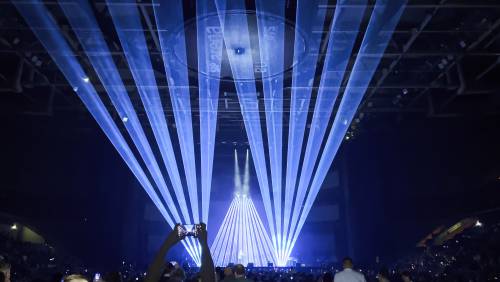

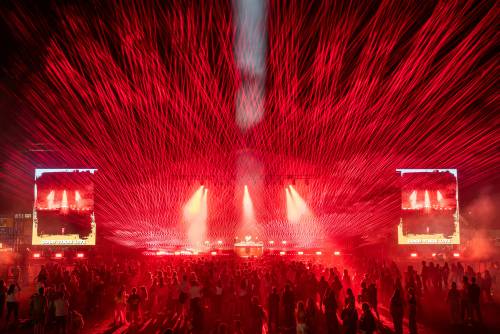

Lasers in action
| Guaranteed Power at aperture | 18'000 mW |
|---|---|
| Power Red | 6 x 500 mW / 638 nm |
| Power Green | 6 x 900 mW / 525 nm |
| Power Blue | 6 x 1600 mW / 450 nm |
| Laser Source | Diode |
| Laser Class | 4 |
| Scanner | 30kpps at 8° |
| Max. Scan Angle | 40° |
| Beam Specifications | 3 x 6 mm / 1.2 mrad |
| Operation Modes | ILDA / DMX / ArtNet |
| Basic Patterns | >140 |
| IP rating | IP66 |
| Dimensions | 960 x 280 x 340 mm (L x W x H), w/o bracket |
| Weight | 33 kg |
| Power Supply | 100 V - 240 V AC, 50/60 Hz |
| Power Consumption | 360 W |
